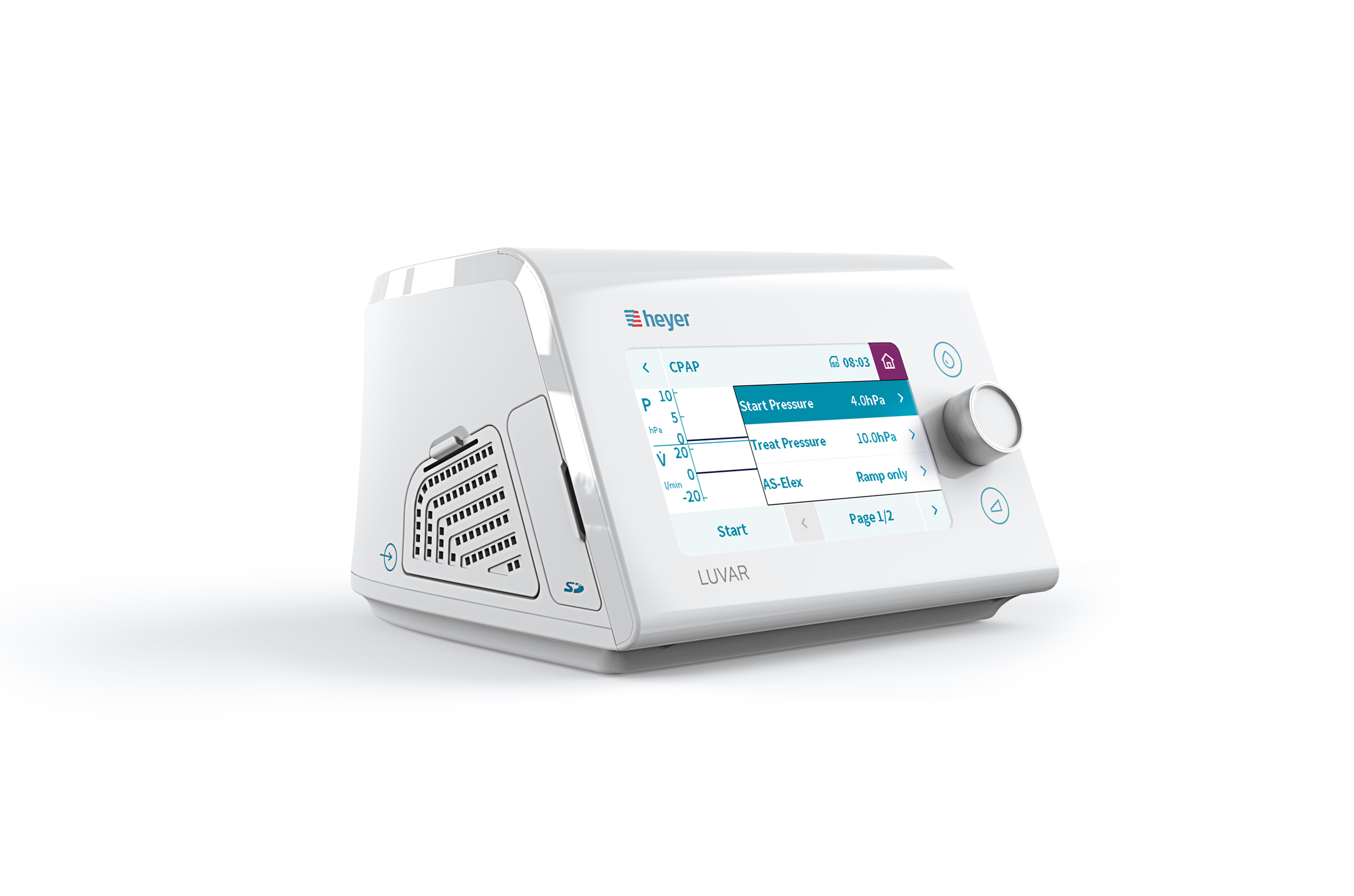

Light-weight and compact design
The modern design of the heyer medical LUVAR system with its compact size makes the device a visual highlight and ideal companion for holidays or business trips. -
All devices within the LUVAR series allow for the user to have access to an extended overview of the therapy and efficiency data For comprehensive evaluation, the therapy and compliance data of the last 365 days is available via the heyer medical analysis software.
With only 30dB, LUVAR series offers a silent therapy operation in a new compact designeven at its maximum flow rate.
LUVAR series enable individual and user adjusted sleep therapy. The well-known and proven breasyflex option ensures particularly gentle and pleasant therapy adjustable in CPAP and APAP therapy. The APAP and AutoS mode are available for the automatic adaptation of the necessary therapy pressures for the individual user needs.

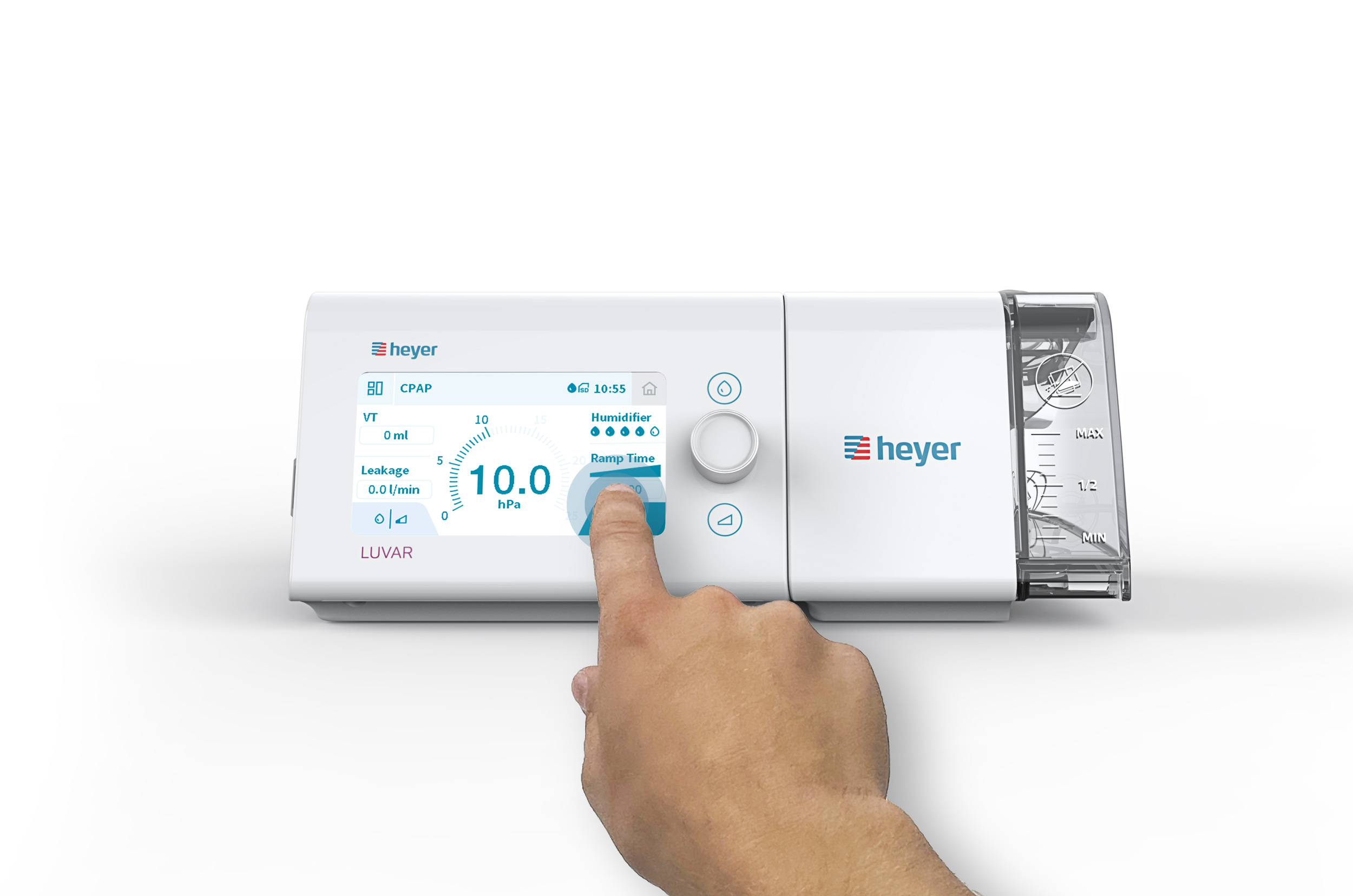

LUVAR series has the typical heyer intuitive interface, allowing for very user friendly and intelligent handlingwith a large colour LED display.
LUVAR series like all heyer medical AG devices are developed in Germany using the latest development standards by highly qualified and long experienced engineers. The production of LUVAR series takes place in compliance with the strictest Germany quality standards.
Luvar A | |||||||
Luvar STA | |||||||
CPAP | Auto CPAP | BiLevel | |||||
Auto S | S | ST | T | ||||
Initial pressure | 4.0 – 20.0 hPa | ✓ | ✓ | ||||
Initial pressure | 4.0 – 23.0 hPa | ✓ | ✓ | ✓ | ✓ | ||
Therapy pressure | 4.0 – 20.0 hPa | ✓ | |||||
Minimum pressure | 4.0 – 20.0 hPa | ✓ | |||||
Maximum pressure | 4.0 – 20.0 hPa | ✓ | |||||
breasyflex Patient | ON, OFF | ✓ | ✓ | ||||
breasyflex | Full time, Ramp only | ✓ | ✓ | ||||
breasyflex Level | OFF, Level 1 - 3 | ✓ | ✓ | ||||
EPAP Minimum | 4.0 – 23.0 hPa | ✓ | |||||
EPAP Maximum | 4.0 – 23.0 hPa | ✓ | |||||
PS | 2.0 – (25.0 hPa – EPAPMax) | ✓ | |||||
EPAP | 4.0 – 23.0 hPa | ✓ | ✓ | ✓ | |||
IPAP | 6.0 – 25.0 hPa | ✓ | ✓ | ✓ | |||
VT Minimum | OFF, 200 – 1500 ml | ✓ | |||||
Increase pressure | 0 – (25.0 hPa - IPAP) | ✓ | |||||
VT Min Alarm | ON, OFF | ✓ | |||||
Ti Min | 0.5 – 3.9 s | ✓ | ✓ | ||||
Ti Max | 1.0 – 4.0 s | ✓ | ✓ | ||||
Ti (inspiration time) | 0.5 – 4.0 s | ✓ | ✓ | ||||
Frequency | 5 – 40 bpm | ✓ | ✓ | ||||
Apnea time | 4 – 20 Seconds | ✓ | |||||
Insp. Trigger | Level 1 - 6 | ✓ | ✓ | ✓ | |||
Exsp. Trigger | Level 1 - 6 | ✓ | ✓ | ✓ | |||
I flank | Level 1 - 6 | ✓ | ✓ | ✓ | ✓ | ||
E flank | Level 1 - 6 | ✓ | ✓ | ✓ | ✓ | ||
Leakage warning | ON, OFF | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Backup | ON, OFF | ✓ | ✓ |
